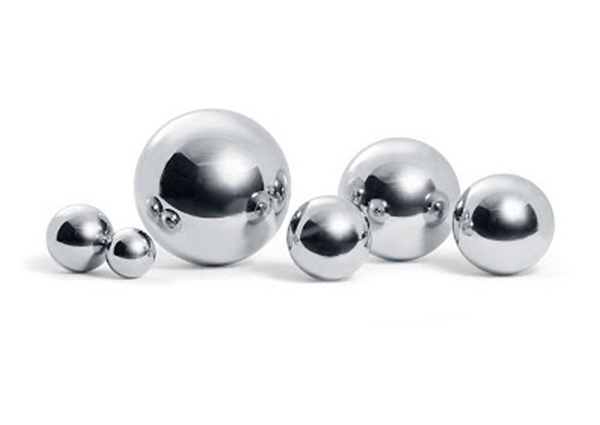

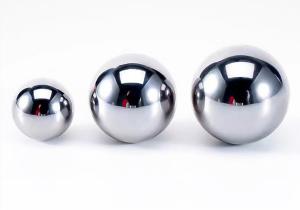

Stainless Steel Ball
300 series stainless steel ball
Description
300 series stainless steel balls: Austenitic stainless steel balls--This series include AISI 304, AISI 316, AISI 316L,etc., which offers prefect rust resistance, brilliant corrosion resistance, high toughness and none-magnetic (magnetism of 304 stainless steel balls could be erased. 316 & 316L stainless steel ball has no magnetism). Magnetic balls & Non Magnetic Balls depending on the end application of the balls. 300 series stainless steel ball are usually used for applications where material toughness and resistance to corrosion are more important than hardness.
|
1. Produce name: |
Stainless steel ball |
|
||||||
|
2.Equivalence of Material: |
GB (China) |
ASTM/AISI (USA) |
JIS (Japan) |
NF (France) |
DIN / (Germany) |
BS (UK) |
RUS |
|
|
AISI 304 |
0Cr18Ni9 |
304 |
SUS304 |
Z6CN18.09 |
1.4301 |
304S15 |
08KH18N10 |
|
|
AISI 316 |
0Cr17Ni12Mo2 |
316 |
SUS316 |
Z6CND17.12 |
1.4401 |
316S16 |
08KH16N11M3 |
|
|
AISI 316L |
00Cr17Ni14Mo2 |
316L |
SUS316L |
Z2CND17.12 |
1.4404 |
316S11 |
03KH17N14M2 |
|
|
3. Size Range: |
Ø 2.000 mm – Ø 50.8mm |
|||||||
|
4. Grade: |
G 10, G 16, G 20, G 24, G 28, G 40, G 60, G 100, G 200, G1000 |
|||||||
|
5. Hardness: |
AISI 304 |
AISI 316 |
AISI316L |
|
|
|
|
|
|
|
|
25-39HRC |
25-39HRC |
25-39HRC |
|
|
|
|
|
6. Magnetic: |
AISI 304 |
AISI 316 |
AISI316L |
|
|
|
|
|
|
|
|
Much little(Could erase) |
No |
No |
|
|
|
|
|
7. Anti-corrosion: |
AISI 304 |
AISI 316 |
AISI316L |
|
|
|
|
|
|
|
|
Excellent |
Excellent |
Excellent |
|
|
|
|
|
8. Chemical composition |
||||||||
|
|
C% |
Si% |
Mn% |
S% |
P% |
Cr% |
Mo% |
Ni% |
|
AISI 304 |
≤0.08% |
≤1% |
≤1% |
0.03% |
≤0.045% |
18% – 20% |
* |
8% – 10.5% |
|
AISI 316 |
≤0.08% Max. |
≤1% Max. |
≤2% Max. |
≤0.03% Max. |
≤0.045% Max. |
16% – 18% |
2% – 3% |
10% – 14% |
|
AISI 316L |
≤ 0.03% |
≤ 1% |
≤ 2% |
≤ 0.03% |
≤ 0.035% |
16% – 18.5% |
2% – 3% |
10% – 14% |
|
9. Application: |
|
|
|
|
|
|
|
|
|
AISI 304 |
Aerosol pumps (medical/pharmaceutical industries), Grinding media, Food Industry, Bearings, Agricultural Industry, Automotive Industry |
|||||||
|
AISI 316 |
Photographic chemicals, bleaches, dyes, inks and nitric aicds. |
|||||||
|
AISI 316L |
Photographic chemicals, bleaches, dyes, inks and nitric aicds, medical, decoration, Jewelry, cosmetic industry. |
|||||||
|
10.Packing |
Standard: 10kg or 20kg per carton, 250kg/per barrel, 1 ton per pallet or as customer required |
|||||||
|
11.Conditioning |
dry or oiled |
|
|
|
|
|
|
|
|
12.Delivery time |
Stock within a short time or 15-35 days. |
|
||||||
Standard packing:
