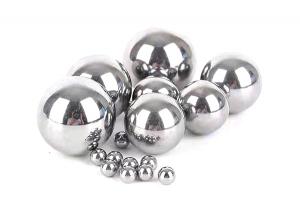

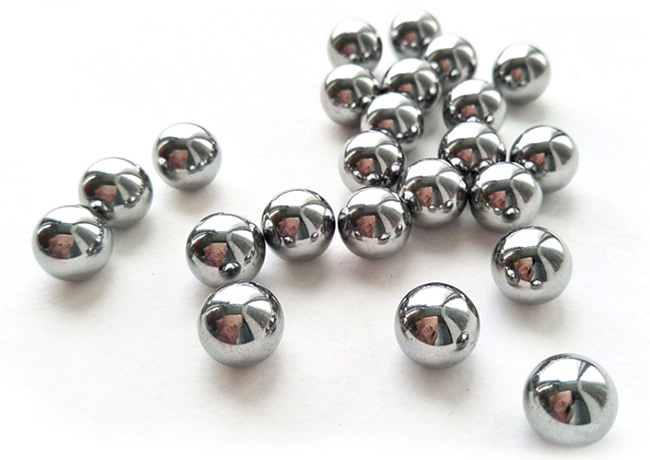

Carbon Steel Ball
Low carbon steel ball
Description
Low carbon steel balls AISI 1010, AISI 1015 also called case hardened carbon provide substantial savings for applications where moderate loads and low speed are requested.
|
1. Produce name: |
Carbon steel ball |
|
|
|
||||||
|
2.Equivalence of Material: |
GB (China) |
ASTM/AISI (USA) |
JIS (Japan) |
NF (France) |
DIN / (Germany) |
BS (UK) |
RUS |
|
|
|
|
AISI 1010 |
Q195 |
1010 |
S10C |
CC10 |
1.1121 |
040A10 |
10 |
|
|
|
|
AISI 1015 |
Q235 |
1015 |
S15C |
XC12 |
1.1141 |
095M15 |
15 |
|
|
|
|
3. Size Range: |
Ø 2.000 mm – Ø 50.8mm |
|||||||||
|
4. Grade: |
G 100, G 200, G500, G1000 |
|||||||||
|
5. Hardness: |
AISI 1010 |
AISI 1015 |
|
|
|
|
|
|
|
|
|
|
58-63 HRC |
58-63 HRC |
|
|
|
|
|
|
|
|
|
6. Chemical composition |
||||||||||
|
|
C% |
Si% |
Mn% |
S% |
P% |
Al% |
O% |
Ni% |
Mo% |
Cr% |
|
AISI 1010 |
0.08-0.13 |
0.1-0.35 |
0.3-0.6 |
≤0.03% |
≤0.035% |
|
|
|
|
|
|
AISI 1015 |
0.12-0.17 |
≤0.3% |
≤0.6% |
≤0.035% |
≤0.035% |
≤0.01% |
≤0.3% |
|
|
|
|
7. Application: |
|
|||||||||
|
AISI 1010/AISI 1015(Hardened): |
Furniture rails, caster wheels, drawer sliders and ball bearings, bicycles, locks, skates, caddies, toys, belt and roller conveyors, tumble finishing. |
|||||||||
|
8.Packing |
Standard: 10kg or 20kg per carton, 250kg/per barrel, 1 ton per pallet or as customer required |
|||||||||
|
9.Conditioning |
dry or oiled |
|||||||||
|
10.Delivery time |
Stock within a short time or 15-35 days. |
|||||||||
Standard packing:
Barrel packing
